BIU-014

BIU-014

New Standard Premium Top Tool

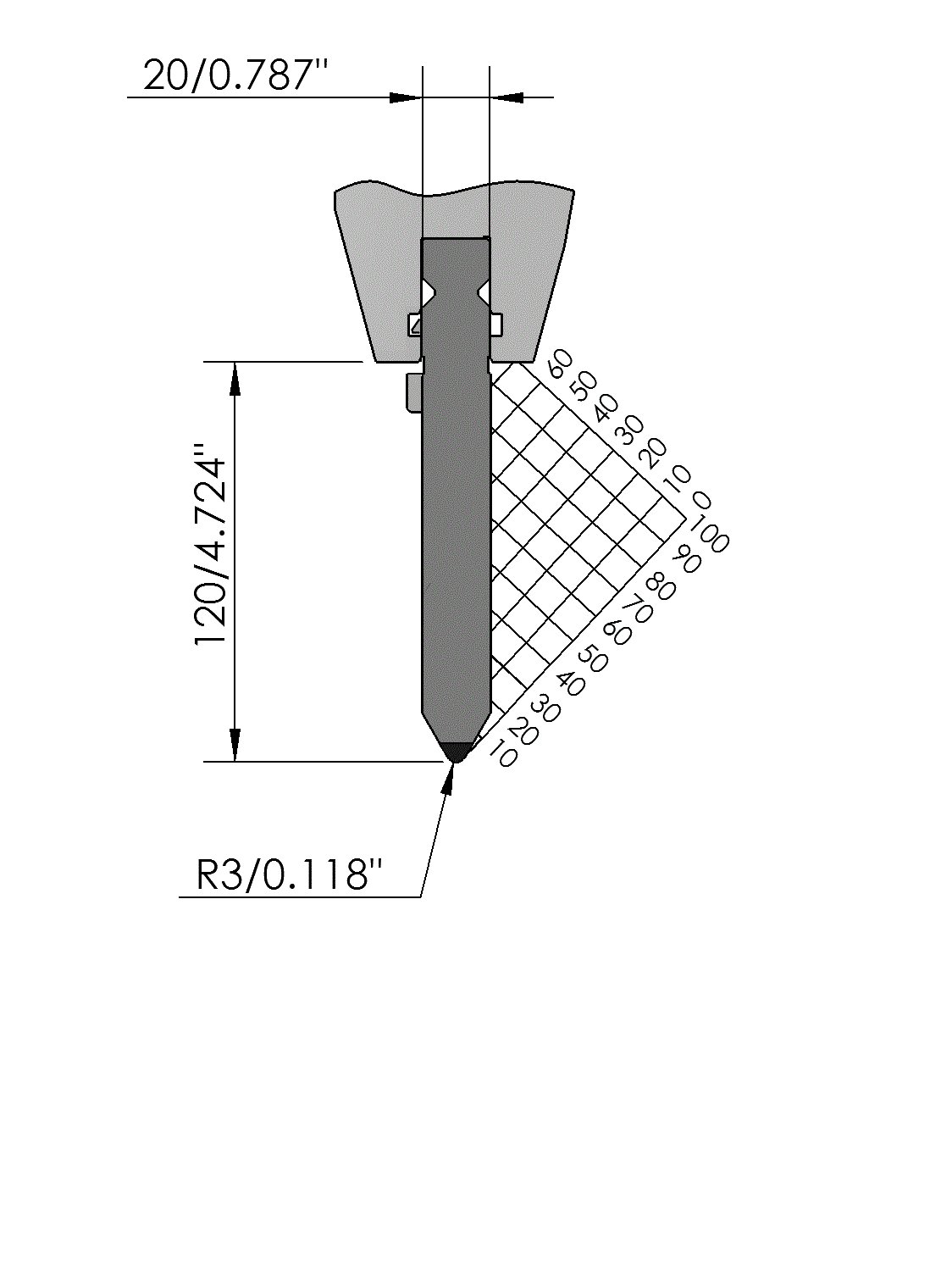

  • Working height H = 120mm
  • Tip angle α = 60°
  • Radius R = 3mm
  • CNC-Deephardened® (≥ 4mm / 56-60HRC)
  • Max. load = 160ton/m

Description

New Standard Premium top tool with Working height H=120mm, α=60°, Radius=3mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=160ton/m. Provided with Safety-Clicks™, which allows you to change the tooling vertically.

Scan DM-code with your Smart Tooling App

Use the WILA Smart Tooling App to scan the DM-code for more information.
