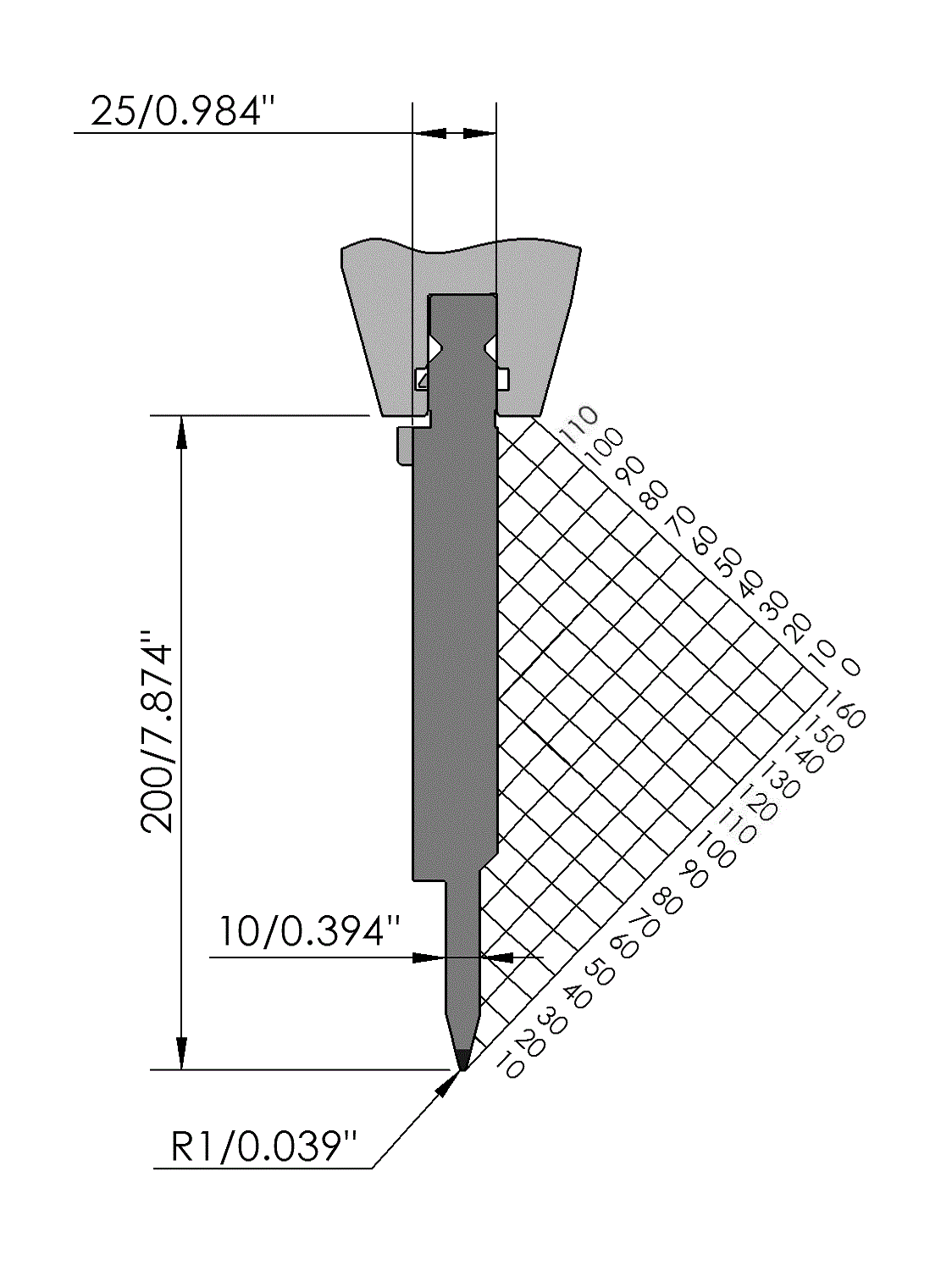

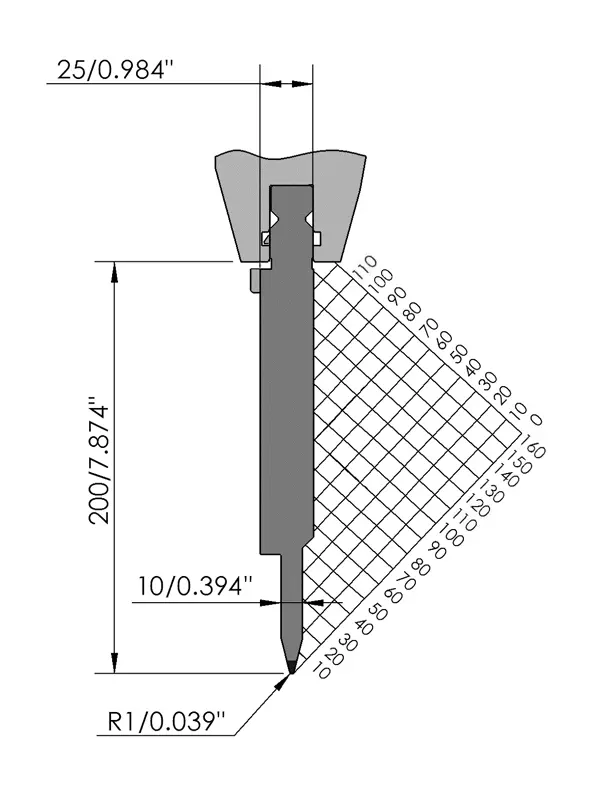

New Standard Premium top tool with Working height H=200mm, α=28°, Radius=1mm including flattening surface, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=100ton/m. Parts <12.5kg provided with Safety-Clicks™, which allows you to change the tooling vertically; all other parts provided with fixed safety pins, which only allows you to change the tooling horizontally.
New Standard Premium
Working Height = 120mm
α = 28°, Radius = 1mm
Max. load = 50ton/m
