OZU-022

OZU-022

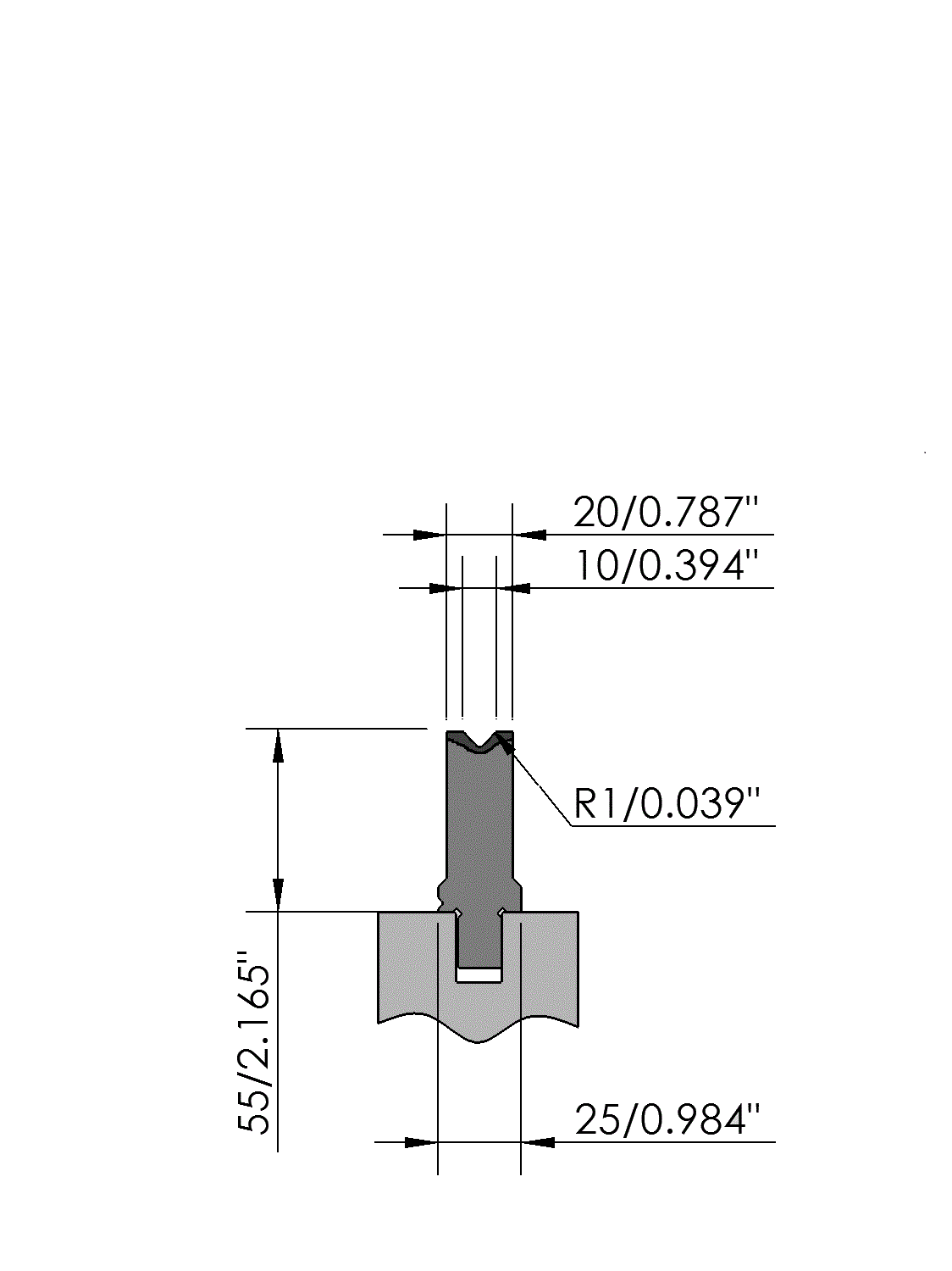

New Standard Premium Bottom Tool
  • Working height = 55mm
  • V-opening = 10mm/86°
  • Radius = 1mm
  • CNC-Deephardened® (≥ 4mm / 56-60HRC)
  • Max. load = 120ton/m

Description

New Standard Premium bottom tool Working height=55mm, V-opening=10mm/86°, Bending radius=1mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO
Max. load=120ton/m.

Scan DM-code with your Smart Tooling App

Use the WILA Smart Tooling App to scan the DM-code for more information.
