OZU-336

OZU-336

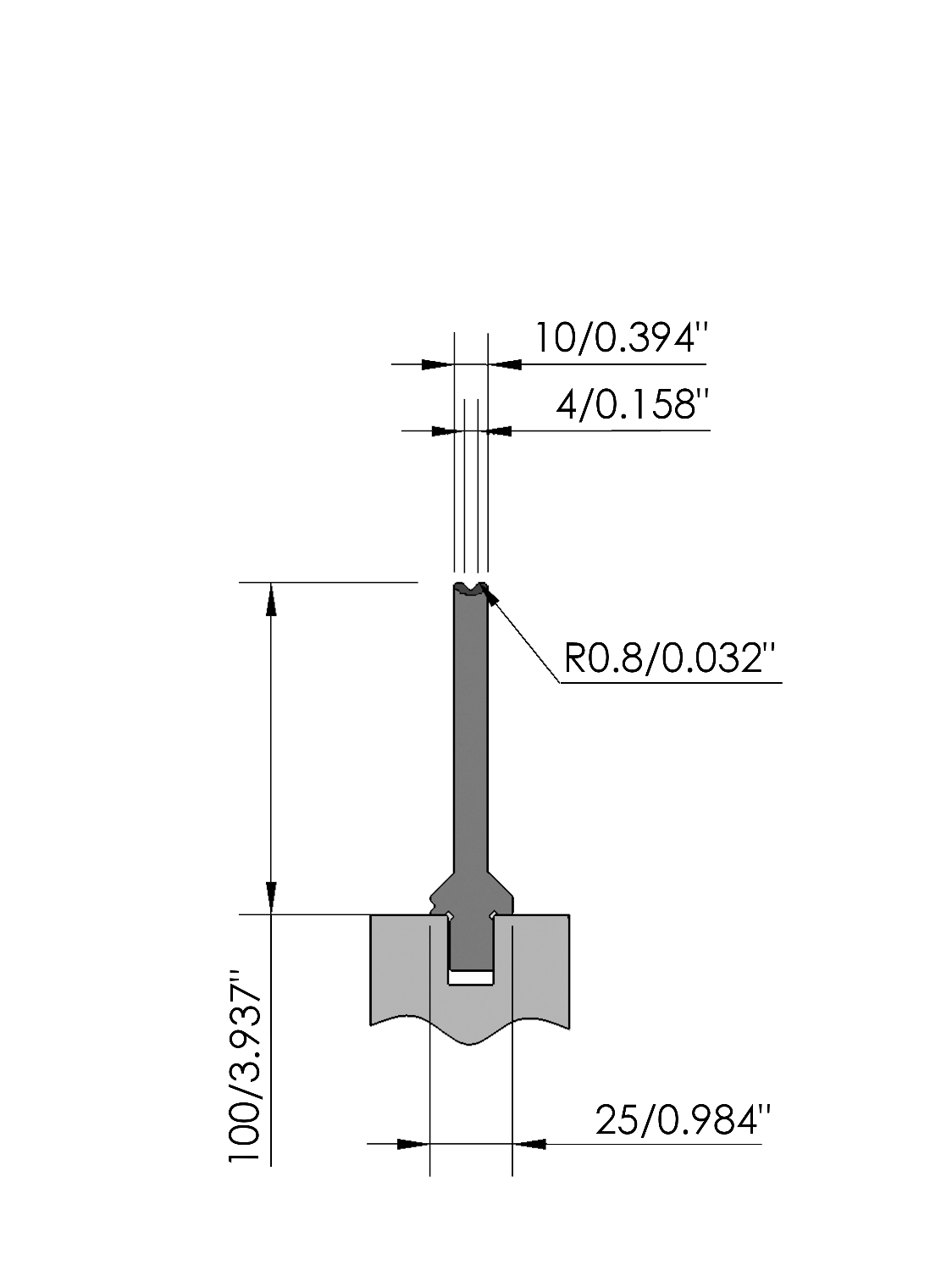

New Standard Premium Bottom Tool
  • Working height = 100mm
  • V-opening = 4mm/86°
  • Radius = 0.8mm
  • CNC-Deephardened® (≥ 4mm / 56-60HRC)
  • Max. load = 45ton/m

Description

New Standard Premium bottom tool Working height=100mm, V-opening=4mm/86°, Bending radius=0.8mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO
Max. load=45ton/m.

Scan DM-code with your Smart Tooling App

Use the WILA Smart Tooling App to scan the DM-code for more information.
