DDU-002

DDU-002

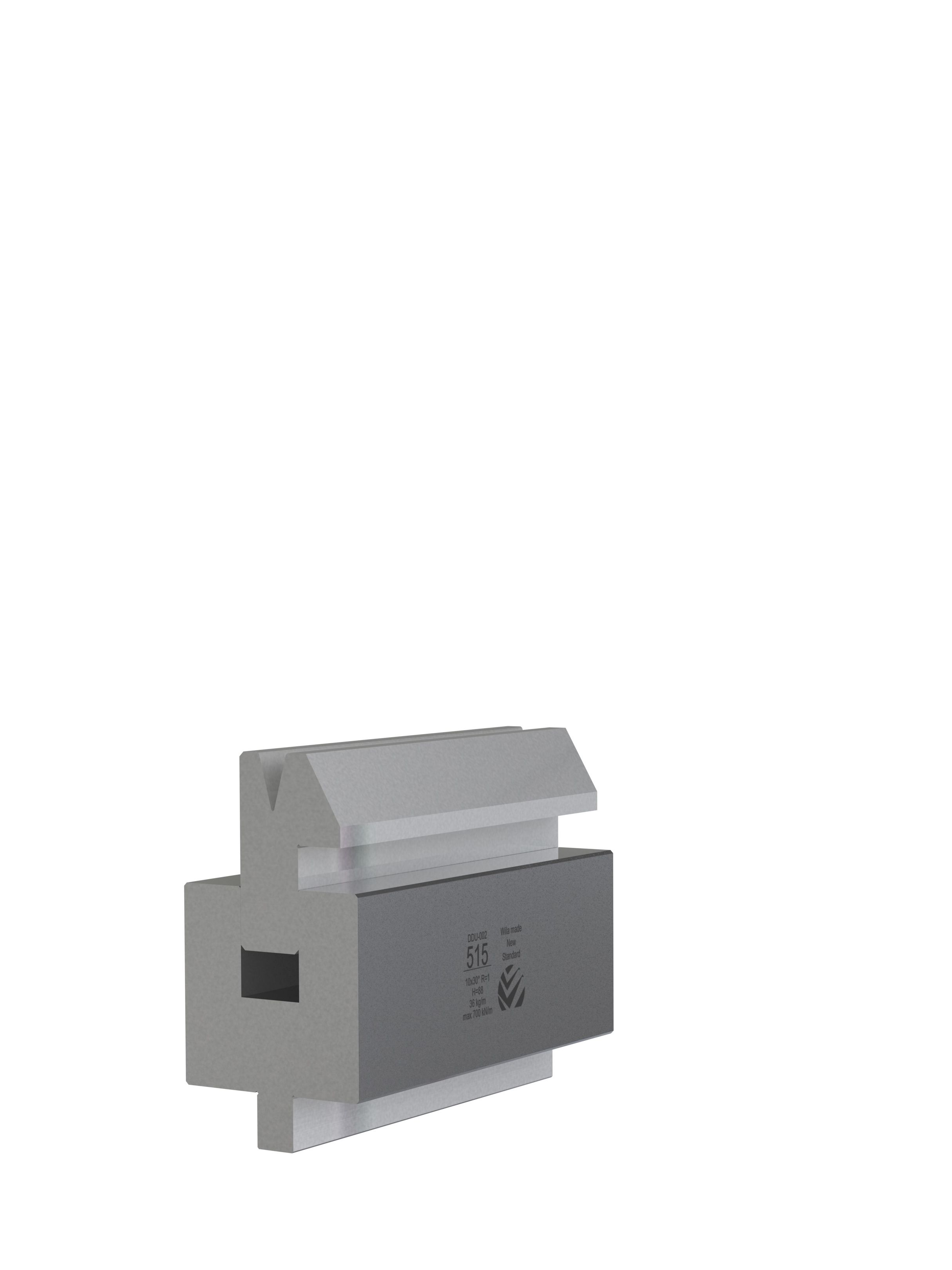

New Standard Flattening Tool
  • New Standard flattening tool
  • Working Height Hclosed = 88mm
  • Width W = 63mm
  • max.load: 70ton/m

Description

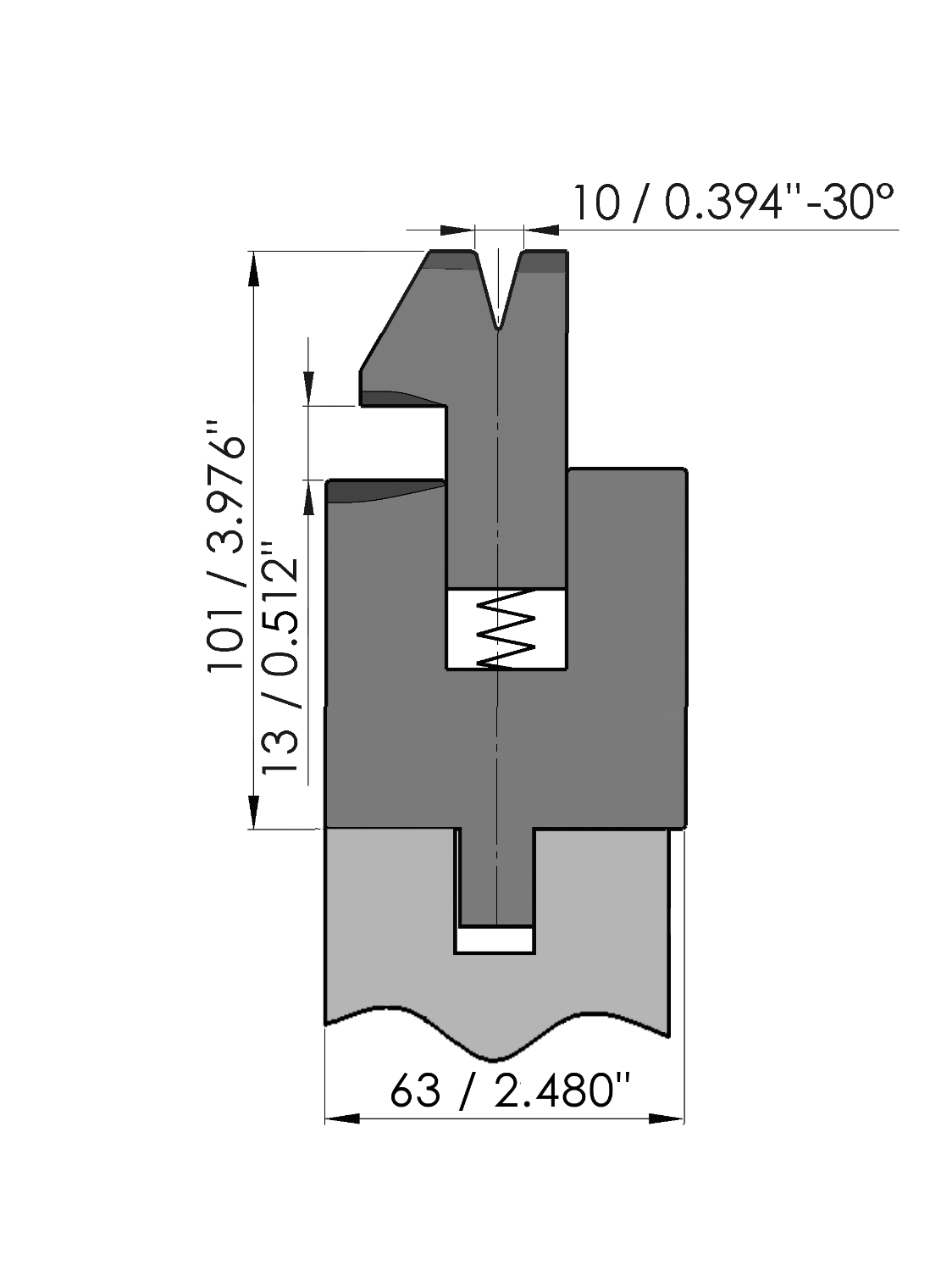

New Standard flattening tool
Hclosed=88mm, B=63mm, existing of:
Flattening part (upper) provided with V=10mm/30°, Ri=1mm + flattening surface CNC-Deephardened® (at least 4mm / 56-60HRc), mat.: C45;
Guide part (lower) provided with OZU-adaptation B=13.00mm, spring action, stroke=13mm, flattening surface CNC-Deephardened® (at least 4mm / 56-60HRc)weight: 37.3kg/m, max.load: 70ton/m.
