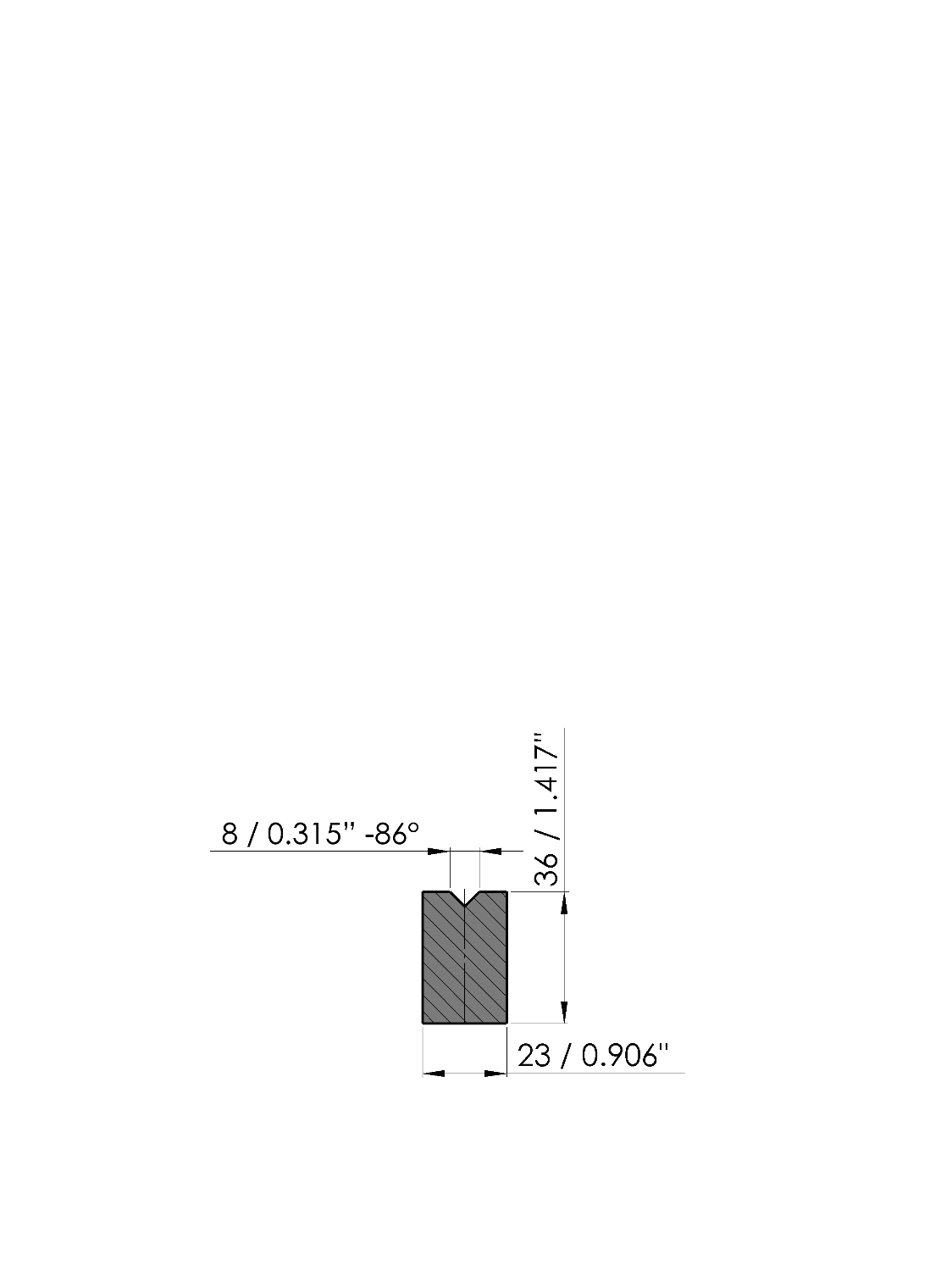

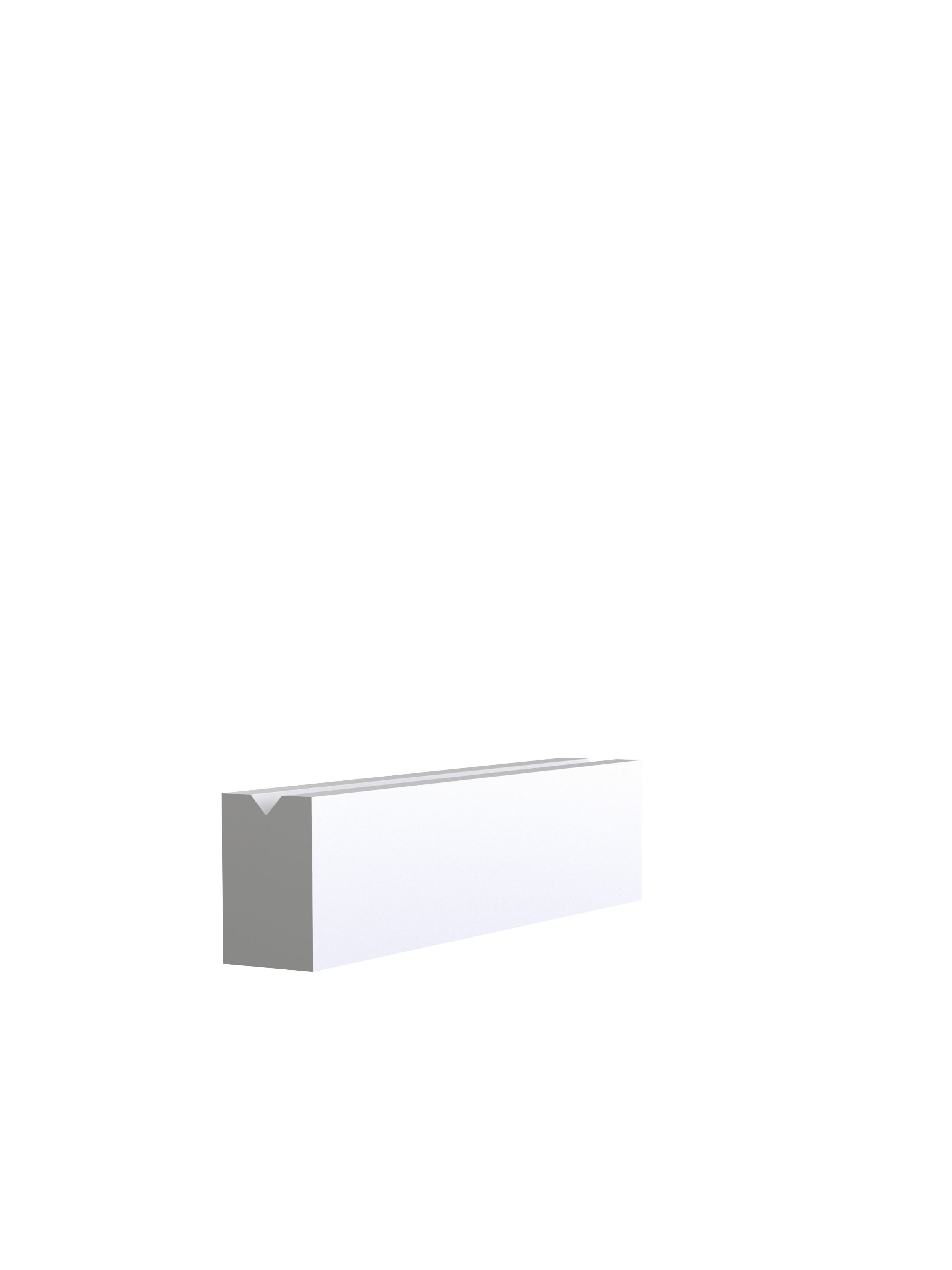

InsertWorking height=36mm, Width=23mm, V-opening=8mm/86°, Radii=1mm, Material=PA6G, not hardened, Weight=0.93kg/m, Max. load=20ton/m.
