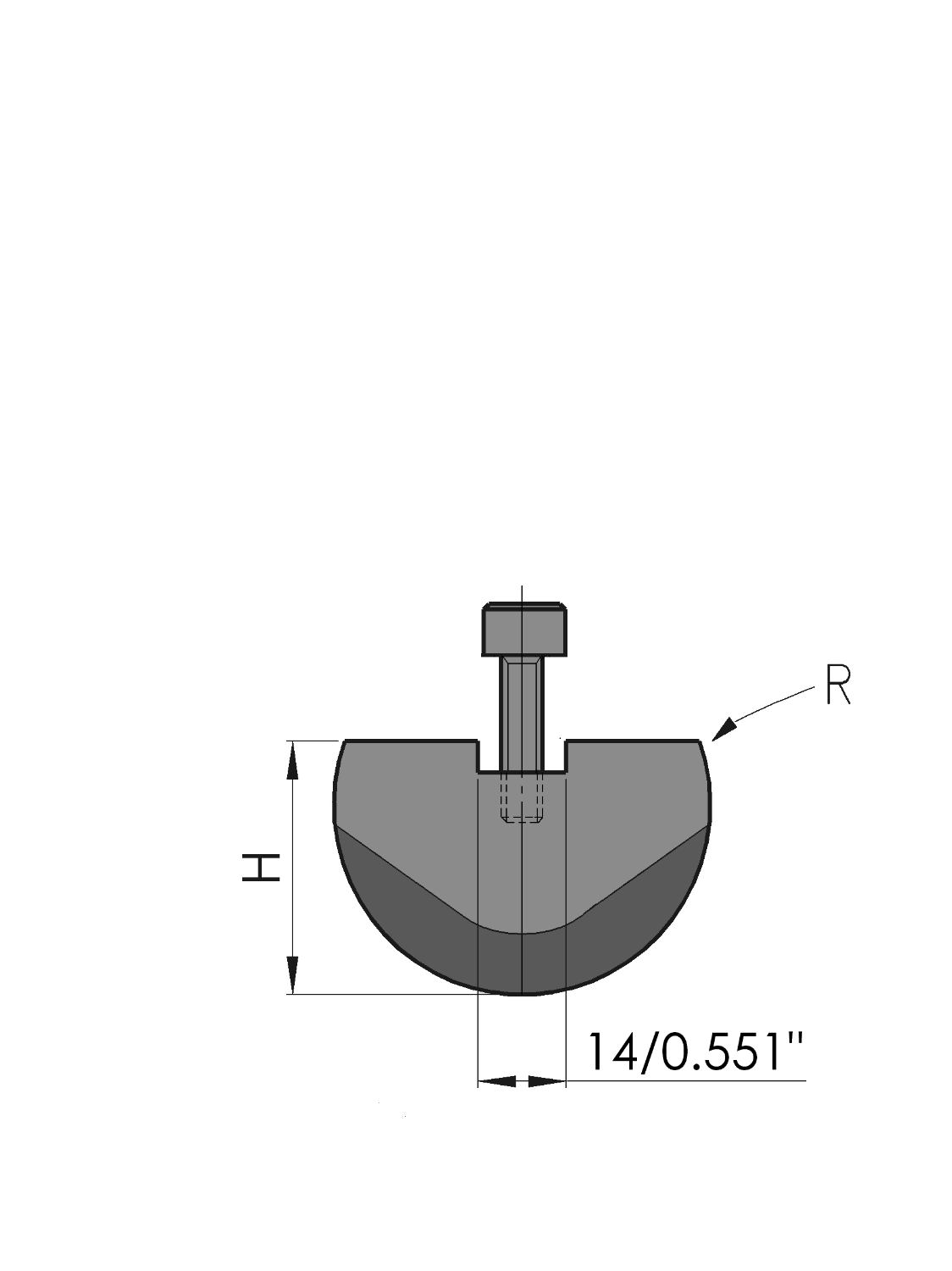

Radius toolWorking height=43.97mm, Width=60mm, Radius=30mm, CNC-Deephardened® (at least 4mm / 56-60HRc), Material=C45, Weight=16.51kg/m, Max. load=500ton/m.
Please leave your email address and we'll send you a download link straight away. Or register for MyWILA and get immediate access to all WILA online content.
Custom Style holderWorking height H = 30mm Width W = 20mm
