HU-004

HU-004

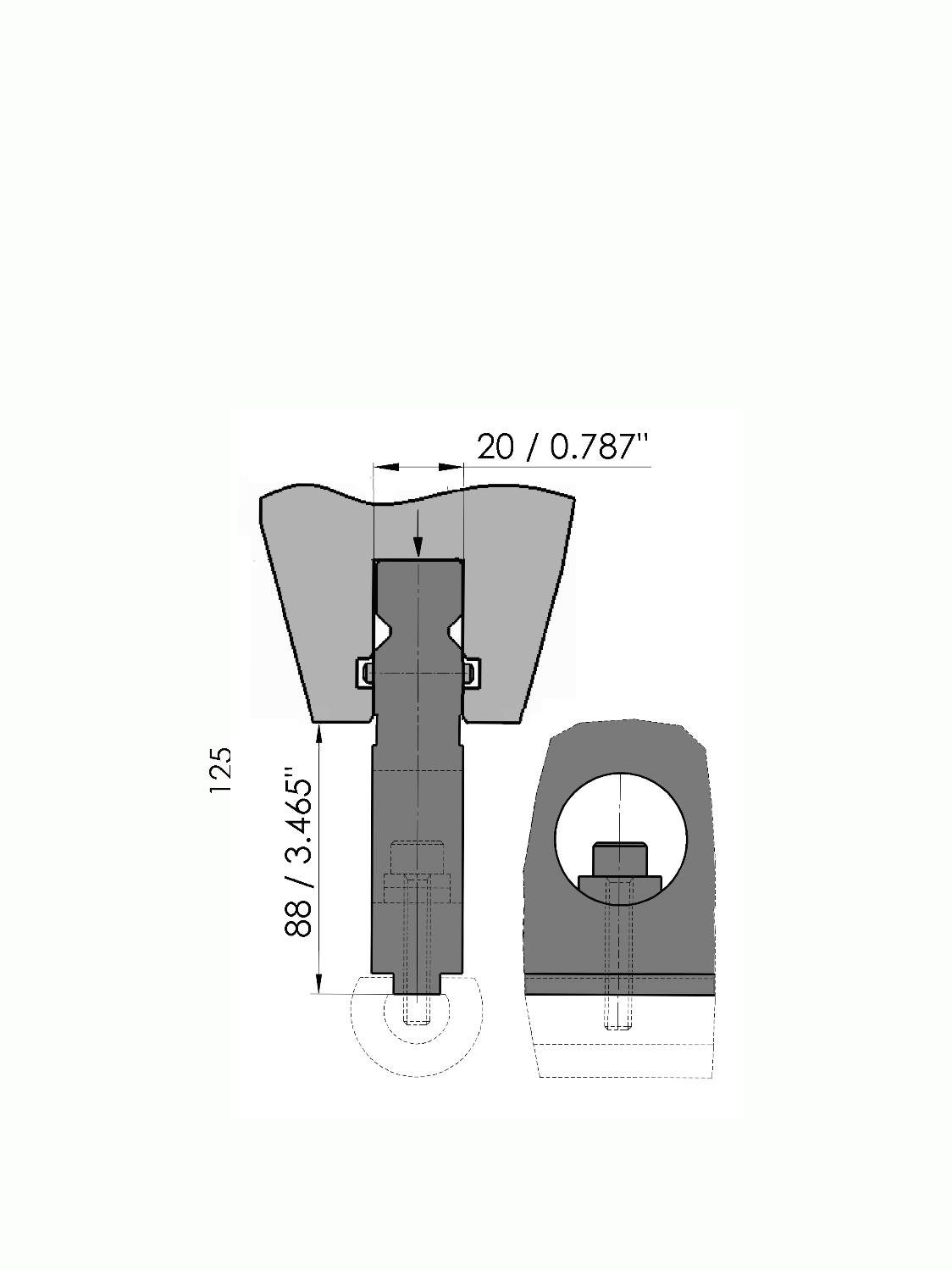

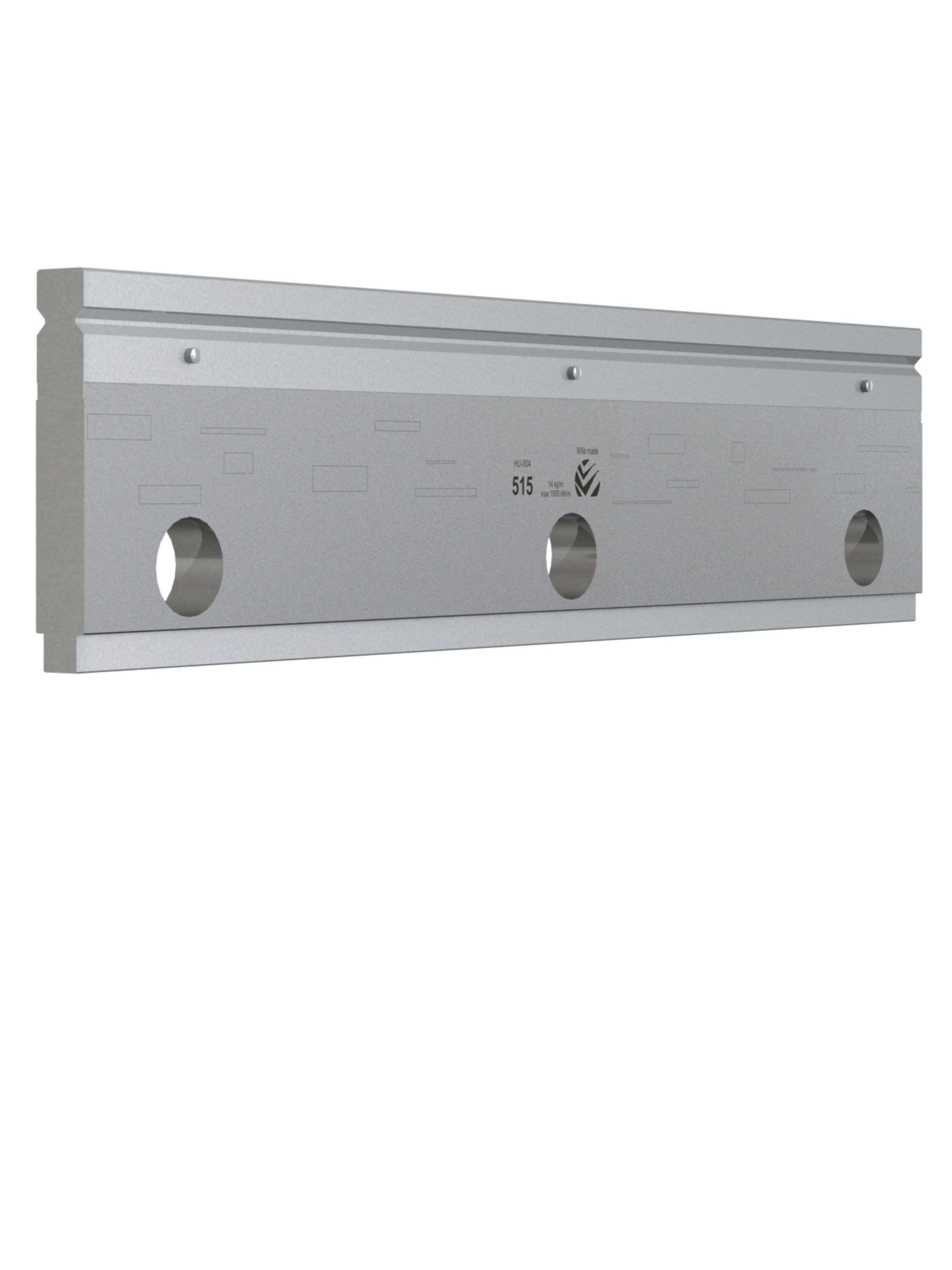

New Standard Radius Tooling Holder
  • Suitable for radius tools (RU)
  • Working height = 88mm (excl. RU)
  • Width W = 20mm
  • Material = C45
  • Weight W = 19.1kg/m
  • Max. load = 160ton/m
  • Description

    New Standard holder suitable for radius tools (RU), Working height=88mm (excl. RU), Width=20mm,Material=C45, Weight=19.1kg/m, Max. load=160 ton/m.

    Note:
    Holder suitable for various radius and flattening tools. Top provided with New Standard adaption, with Safety-Pins. Working height dependent on the radius tools to be used.
