OB-I-MC/ES IV

OB-I-MC/ES IV

New Standard Pro Bottom Tool Holder
  • Clamping Type = Mechanical
  • Adaption = tang
  • Working height H = 55mm
  • Width W = 60mm
  • Max. load = 200ton/m

Description

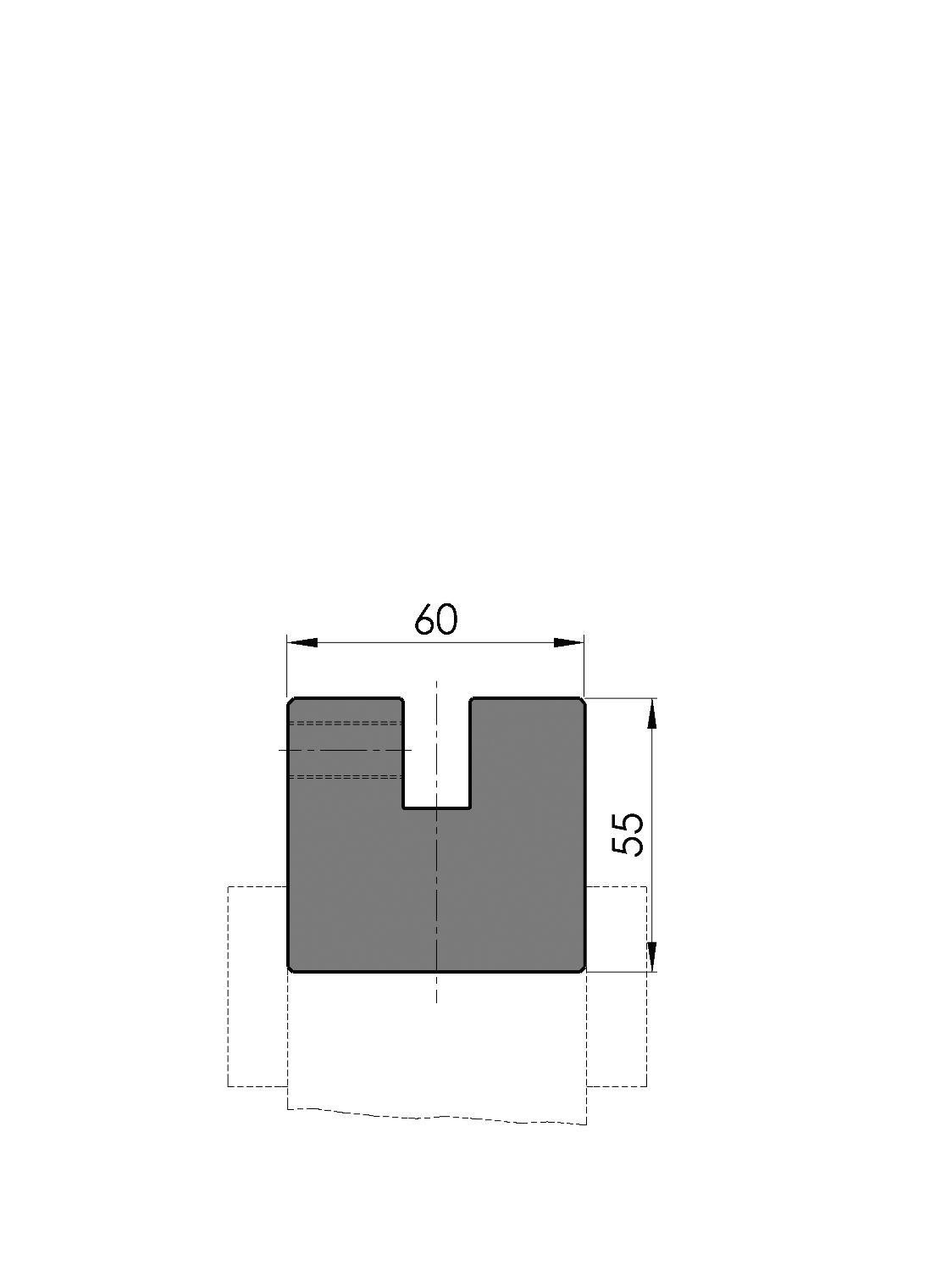

New Standard Pro Custom Style bottom tool holder,
Working height=55mm, Width=60mm, provided with Amada adaptation Width=60.00mm, mechanical clamping by means of set screws M12 pitch 102mm with centre 1000mm pitch 25.50mm, Material=C45 not hardened, max.load: 200ton/m.
