OB-II-HC/ES IV

OB-II-HC/ES IV

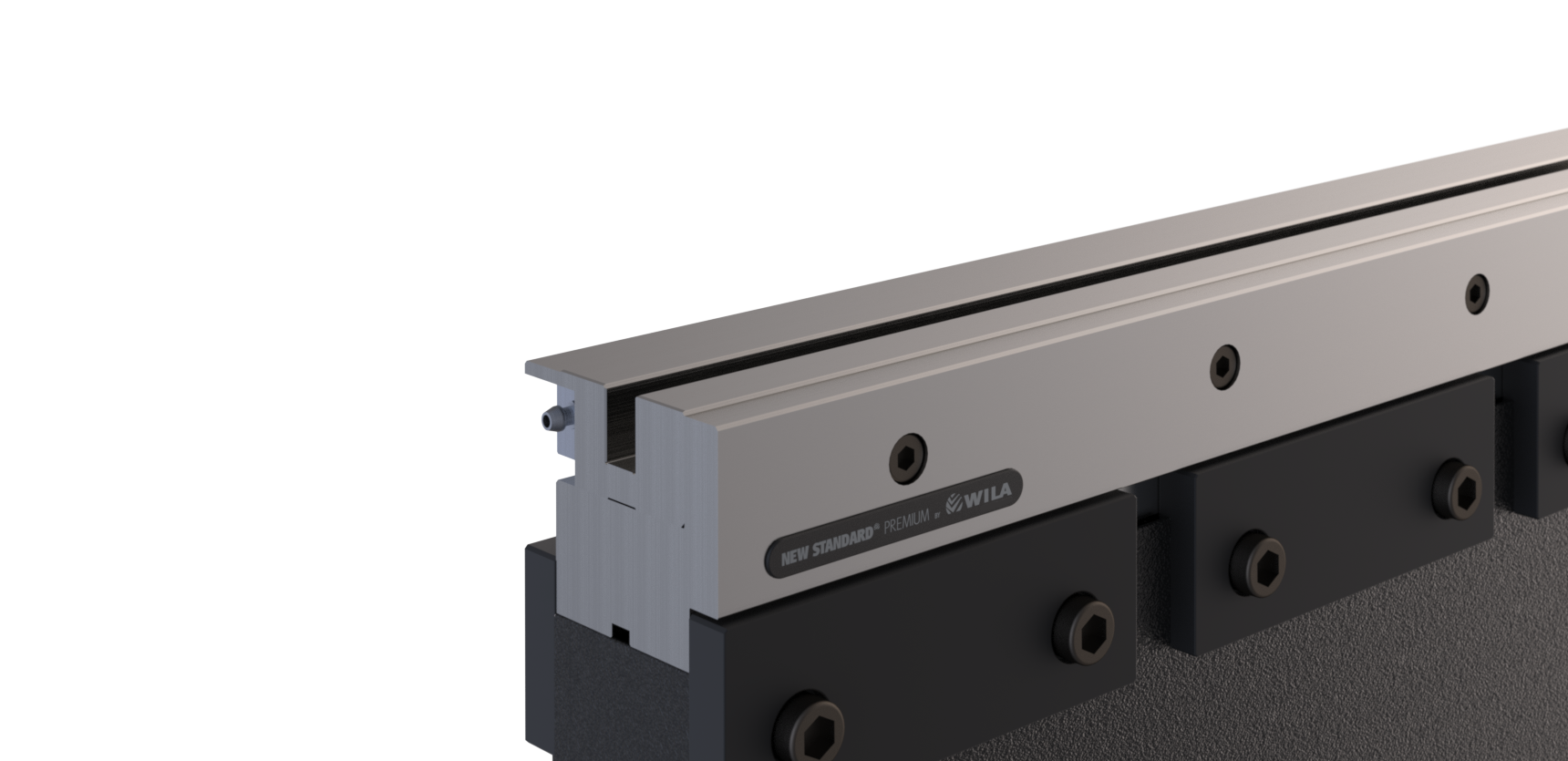

New Standard Premium Bottom Tool Holder
  • Clamping Type = Hydraulic
  • Adaption = tang
  • Pressure surfaces CNC-Deephardened ® (2-4mm / 56-60 HRC)
  • Working height H = 66mm
  • Width W = 87mm

Description

New Standard Premium Custom Style bottom tool holder,
Working height=66mm, Width=87mm, provided with Amada adaptation Width=60.00mm, hydraulic clamping (max. 50bar), oil supply ø10mm, left-end, Material=CR-MO, pressure and reference surfaces CNC-Deephardened® (2-4mm / 56-60HRc).hardenend
Delivery without hydraulic power pack.
