New Standard Pro Clamping

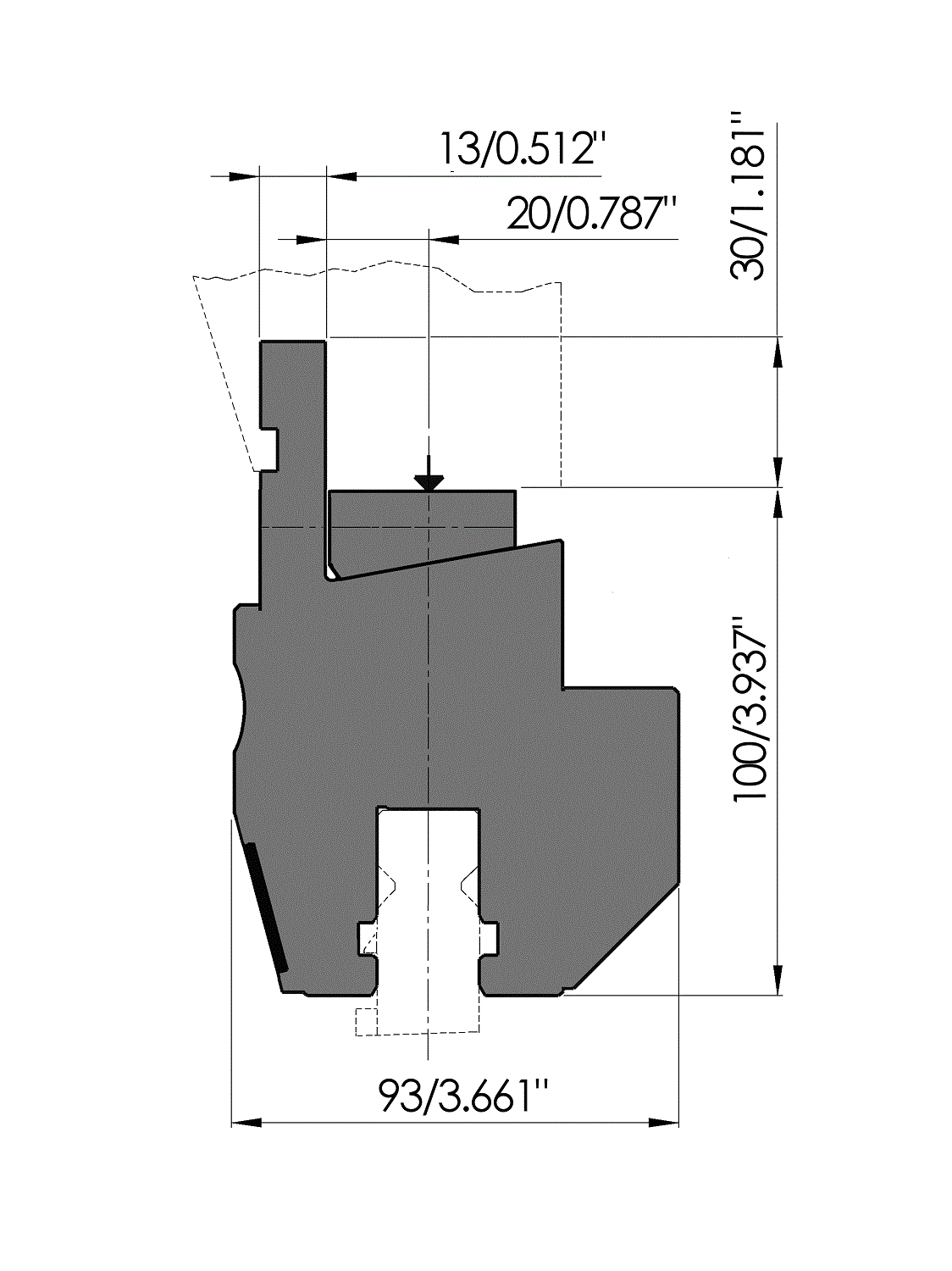

Working height=100mm, Width=93mm, provided with Amada adaptation (center line at 20mm) with crowning key (Ty-alignment), manually by means of push and pull screws, hydraulic clamping (max. 50bar), oil supply ø10mm, left end, Material=C45 not hardened.
Delivery with coverstrip and guards scale ("0" at the left).Delivery without hydraulic power pack and guards.
