NSCL-I-SL-TY/ES I

NSCL-I-SL-TY/ES I

New Standard Pro Clamping
  • Clamping Type = Pneumatic
  • Adaption = upper adaptation
  • Working height H = 100mm
  • Width W = 92mm
  • Max. load = 180ton/m

Description

New Standard Pro Clamping

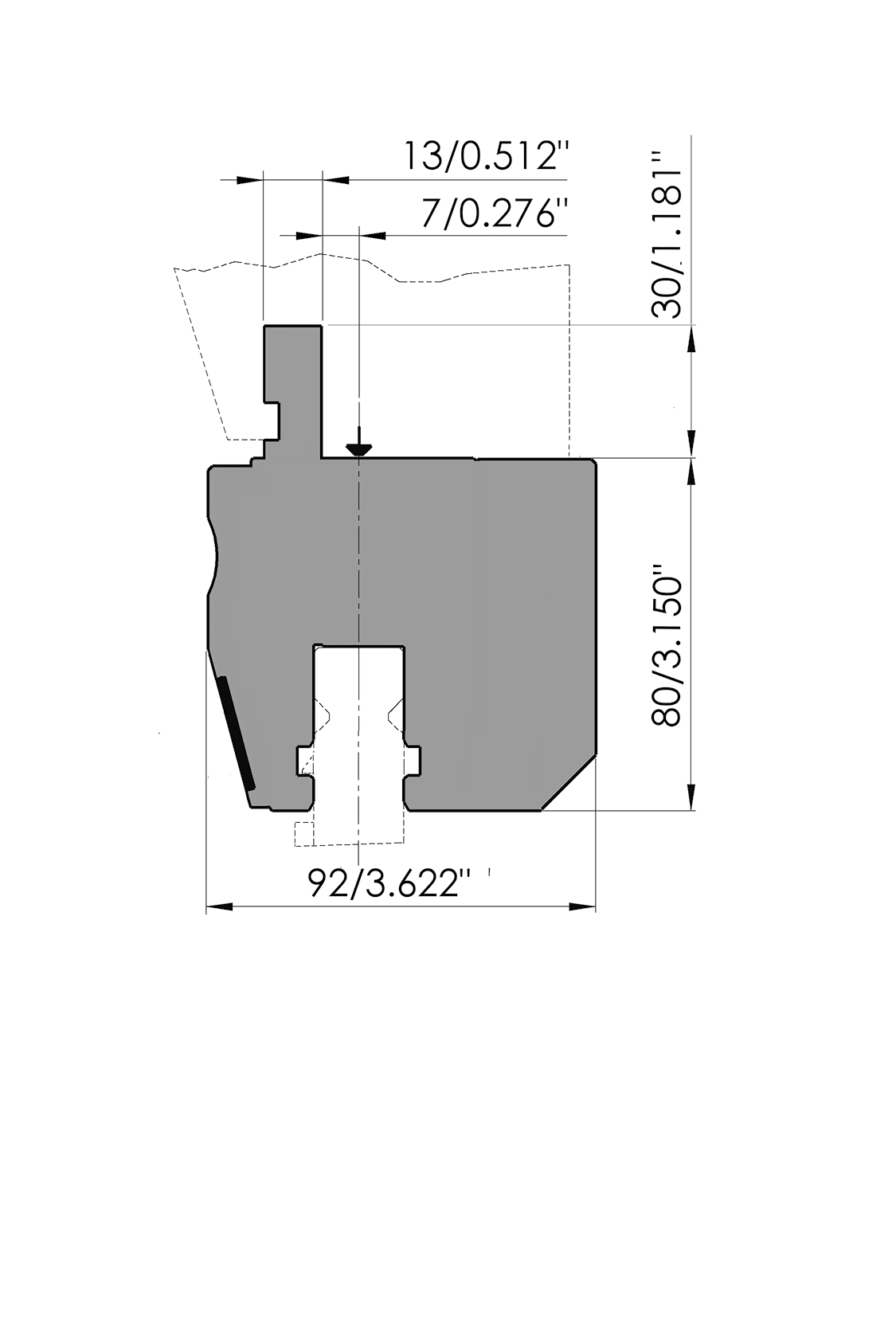

Working height=100mm, Width=92mm, provided with Amada adaptation (center line at 7mm) with crowning key (Ty-alignment), manually by means of push and pull screws, pneumatic clamping, left and right end, Material=C45 not hardened, Max. load=180ton/m.
Delivery with coverstrip, guards and scale ("0" at the left).
