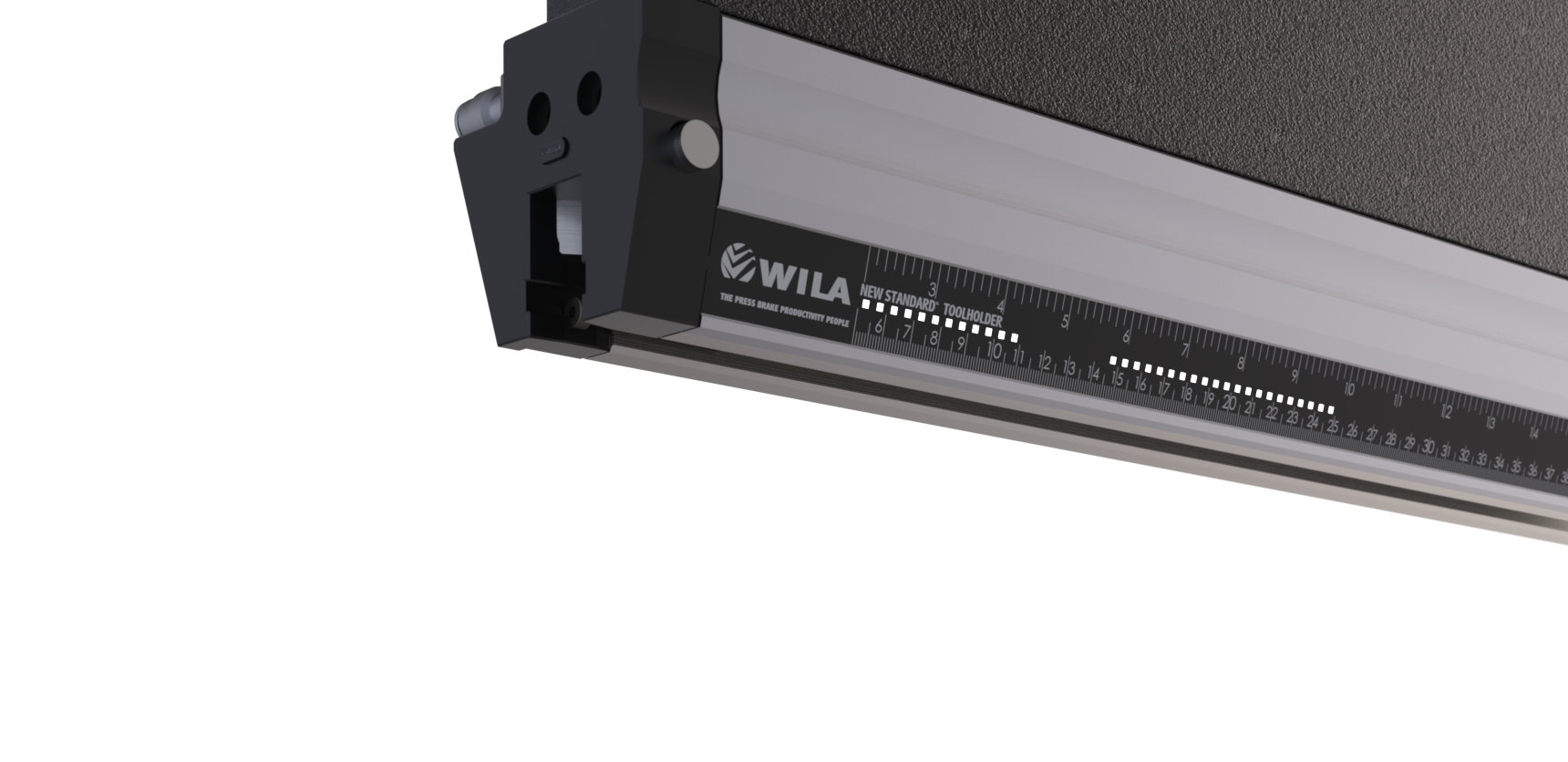

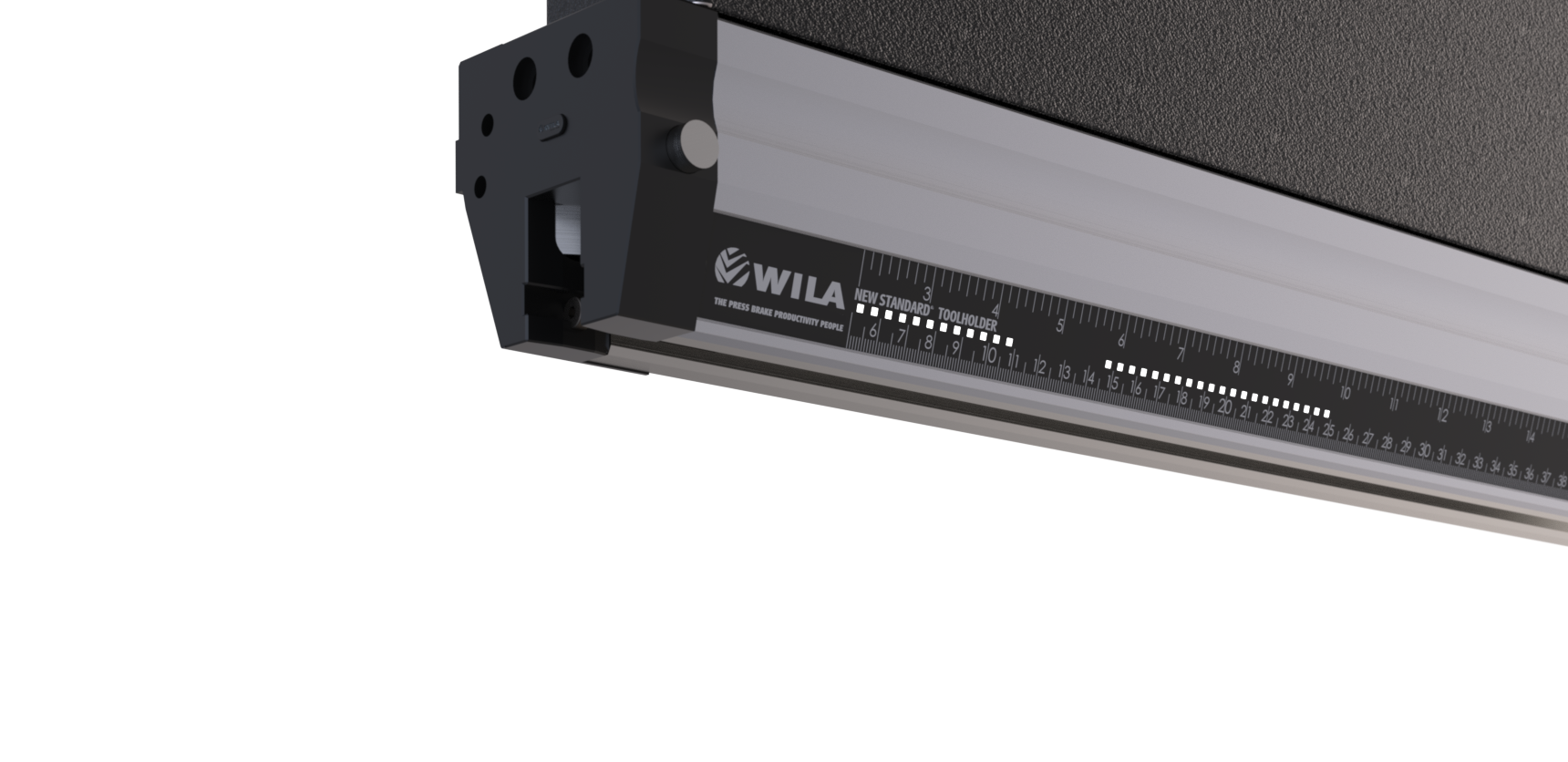

New Standard Premium Crowning,
Working height=95mm, Width=98mm, provided with UPB-hole pattern which is suitable for the fixing holes according to drawing no.: 31364, hydraulic clamping (max. 50bar), oil supply ø10mm, left-bottom.
Crowning: motorized (400V, 50Hz, 3Ph) at the right hand side, Tx-alignment, Ty-alignment on the cover strip (manually by means of single point adjustment), Material=CR-MO, pressure and reference surfaces CNC-Deephardened® (2-4mm / 56-60HRc).Delivery with coverstrip, hardenend guards and scale (front side, metric, "0" at the left).
Delivery without hydraulic power pack.
