New Standard Premium Clamping

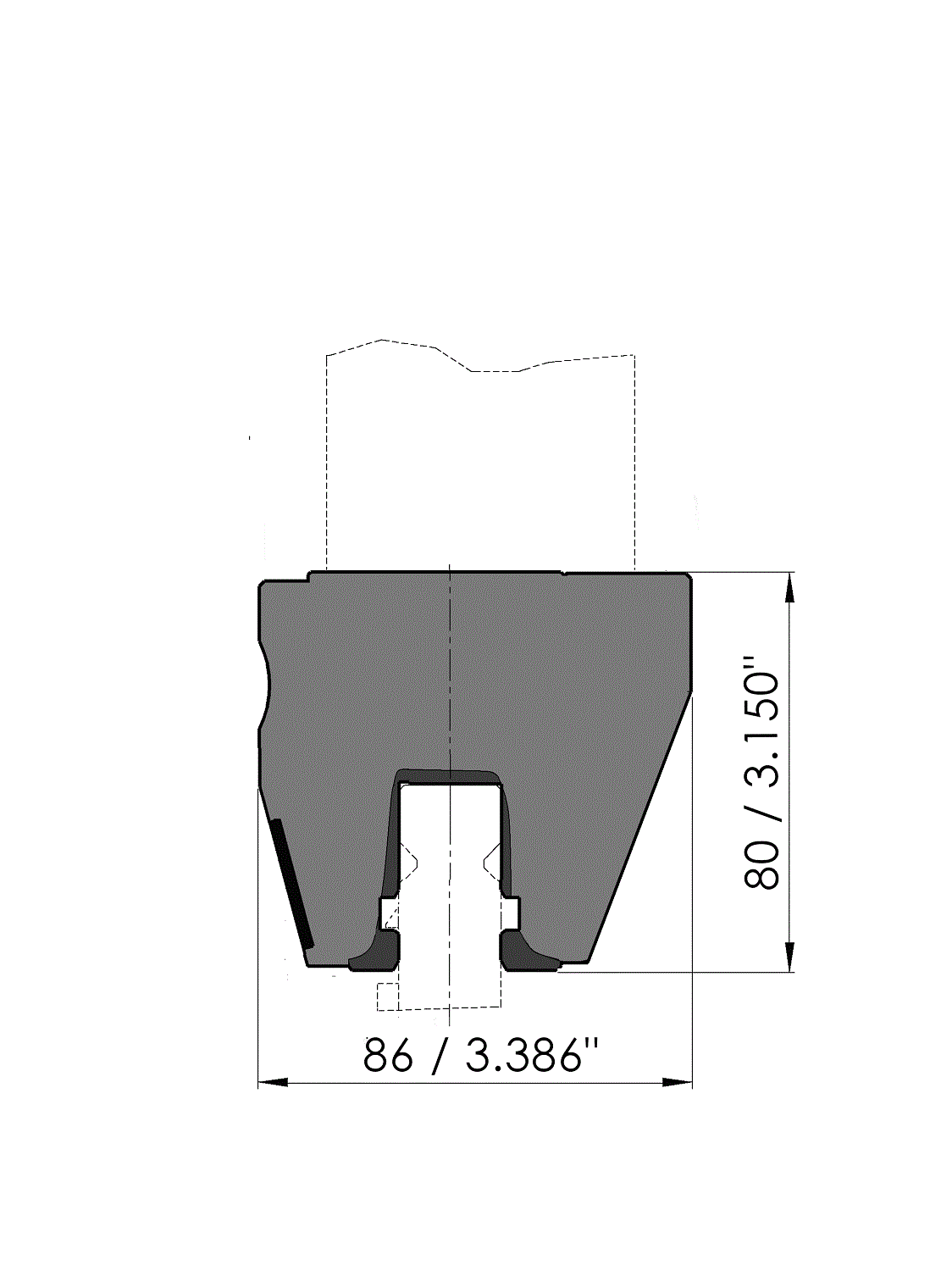

Working height=80mm, Width=86mm, provided with UPB-hole pattern which is suitable for the fixing holes according to drawing no.: 31364 with Tx-alignment, pneumatic clamping, left and right rear, Material=CR-MO, pressure and reference surfaces CNC-Deephardened® (2-4mm / 56-60HRc), Weight=25kg/m, Max. load=200ton/m.
Delivery with coverstrip, hardened guards and scale ("0" at the left).
