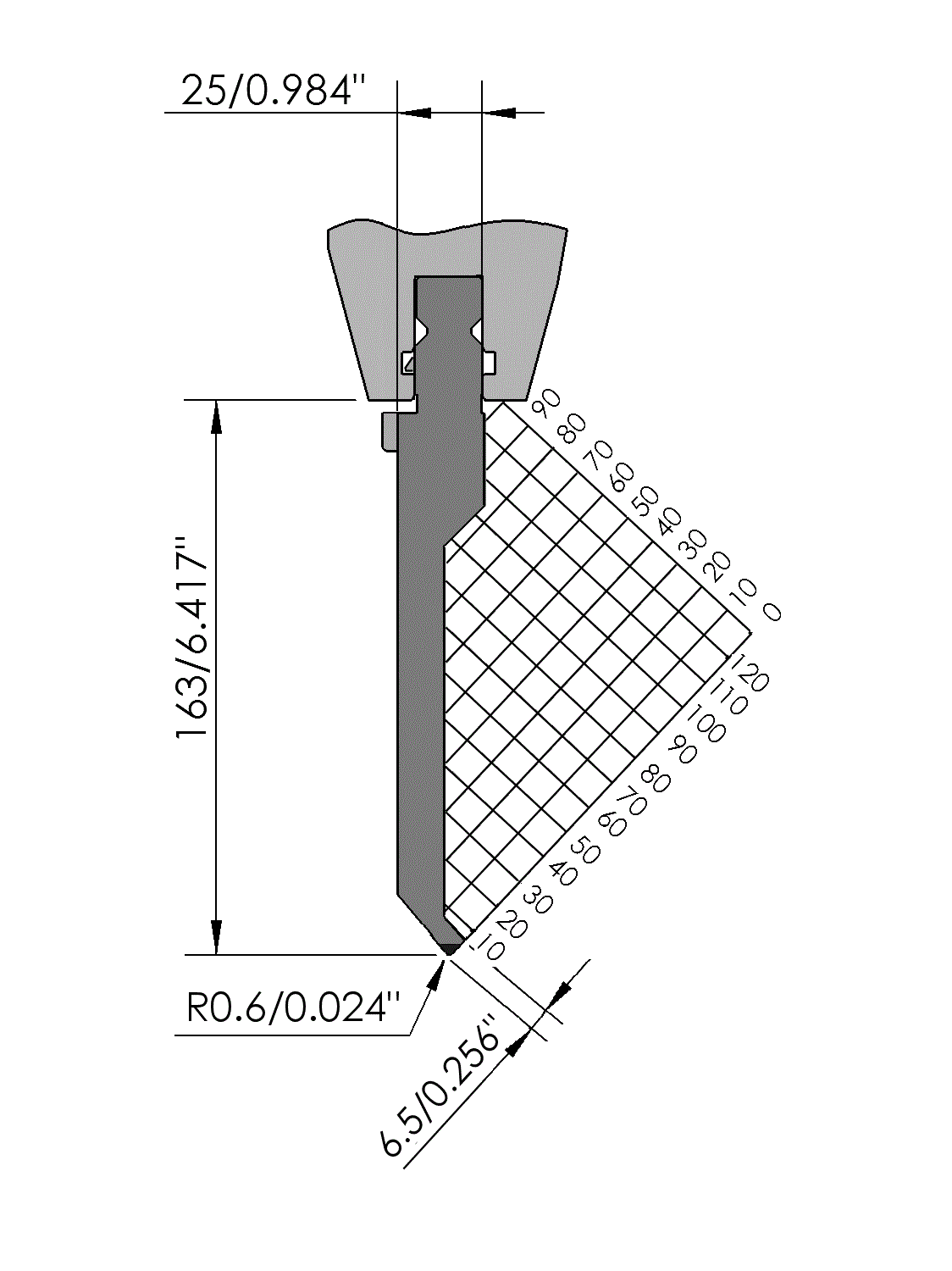

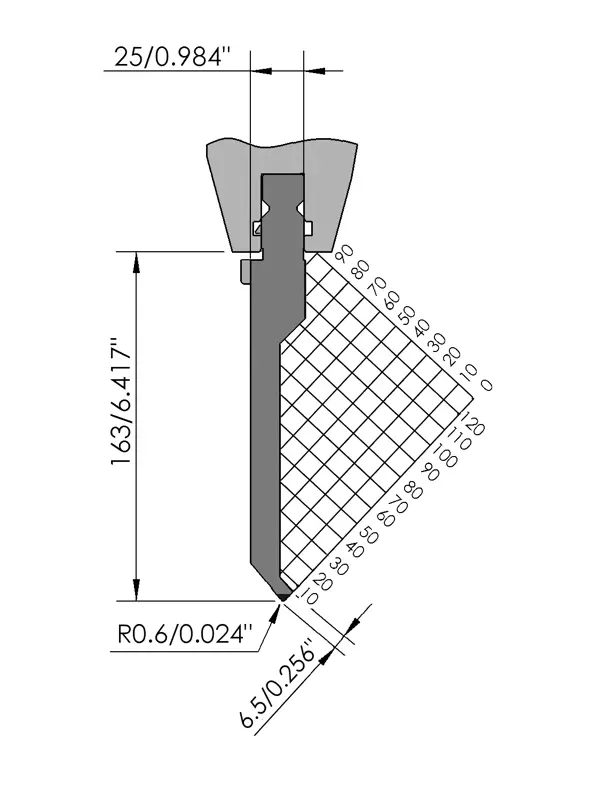

New Standard Premium Top Tool
  • Working height H = 163mm
  • Tip angle α = 86°
  • Radius R = 0.6mm
  • CNC-Deephardened® (≥ 4mm / 56-60HRC)
  • Max. load = 45ton/m


New Standard Premium top tool with Working height H=163mm, α=86°, Radius=0.6mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=45ton/m. Provided with Safety-Clicks™, which allows you to change the tooling vertically.

Scan DM-code with your Smart Tooling App

Use the WILA Smart Tooling App to scan the DM-code for more information.
