OZU-373

OZU-373

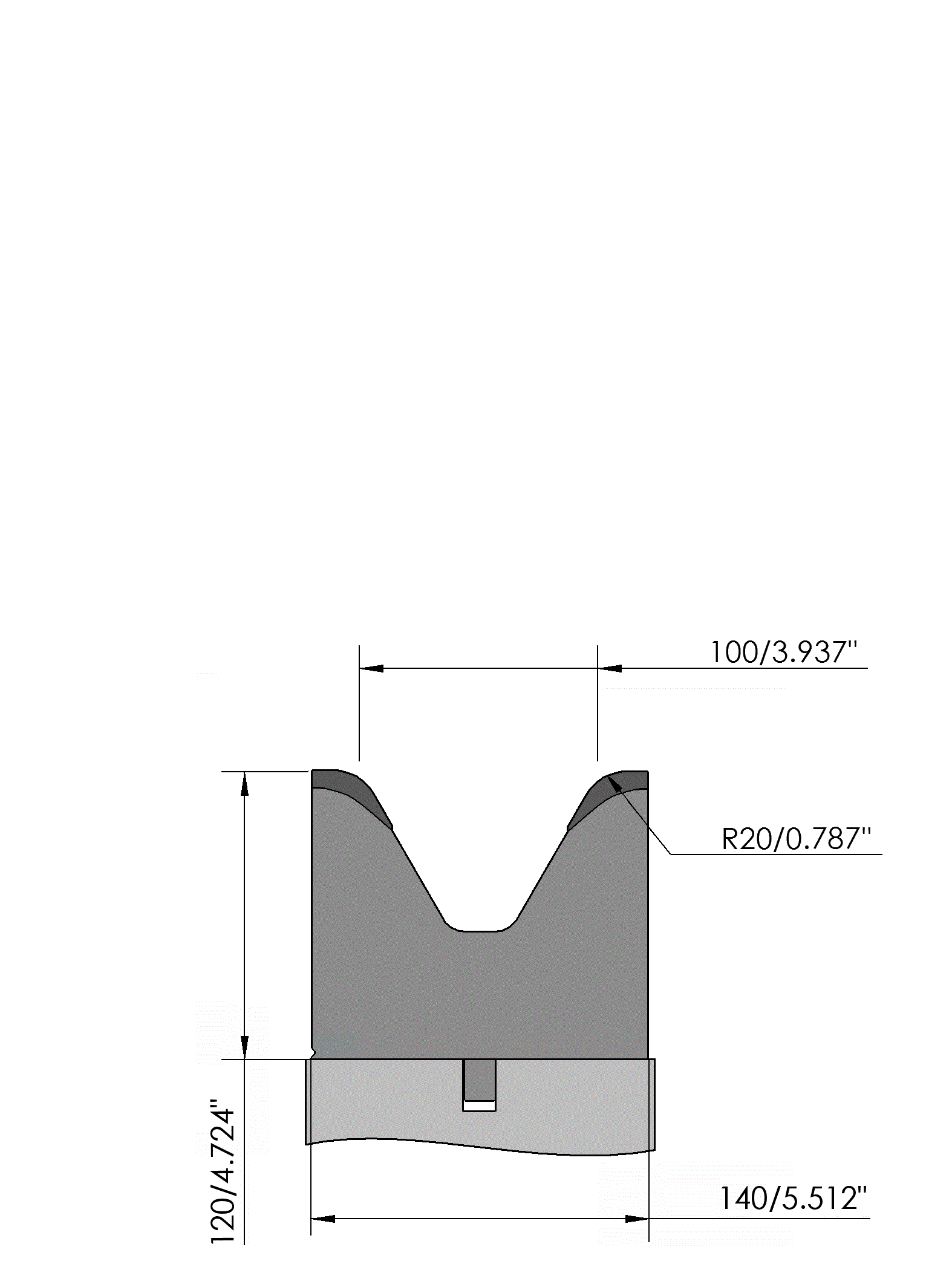

New Standard Premium Bottom Tool
  • Working height = 120mm
  • V-opening = 100mm/60°
  • Radius = 20mm
  • CNC-Deephardened® (≥ 4mm / 56-60HRC)
  • Max. load = 250ton/m (α = 90°)

Description

New Standard Premium bottom tool Working height=120mm, V-opening=100mm/60°, Bending radius=20mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=250ton/m (α=90°).

Scan DM-code with your Smart Tooling App

Use the WILA Smart Tooling App to scan the DM-code for more information.
