OZU-HD-376

OZU-HD-376

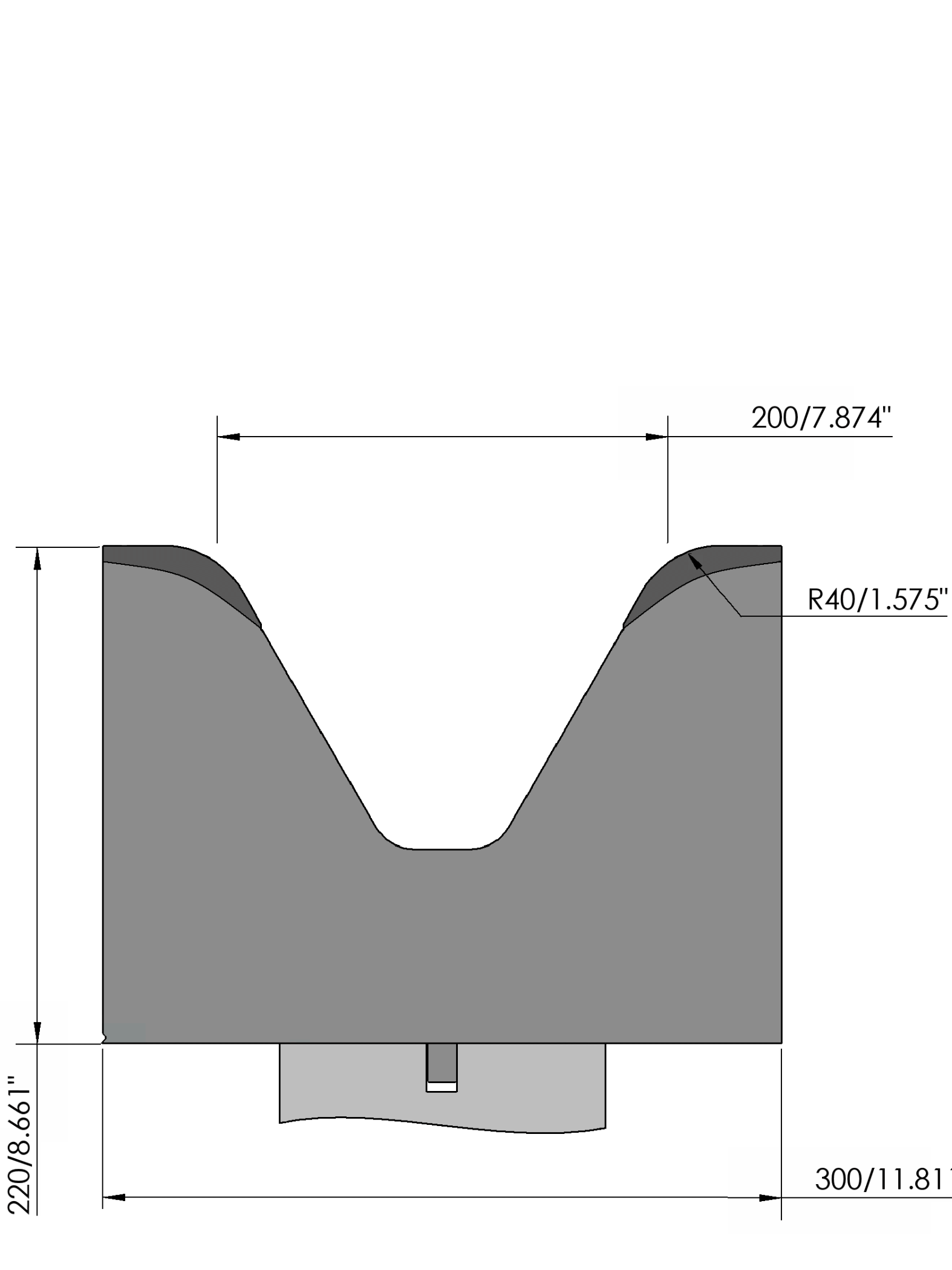

New Standard Premium Bottom Tool
  • Working height = 220mm
  • V-opening = 200mm/60°
  • Radius = 40mm
  • CNC-Deephardened® (≥ 4mm / 56-60HRC)
  • Max. load = 350ton/m (α = 90°)

Description

New Standard Premium bottom tool Working height=220mm, V-opening=200mm/60°, Bending radius=40mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), , Max. load=350ton/m (α=90°).

Scan DM-code with your Smart Tooling App

Use the WILA Smart Tooling App to scan the DM-code for more information.
