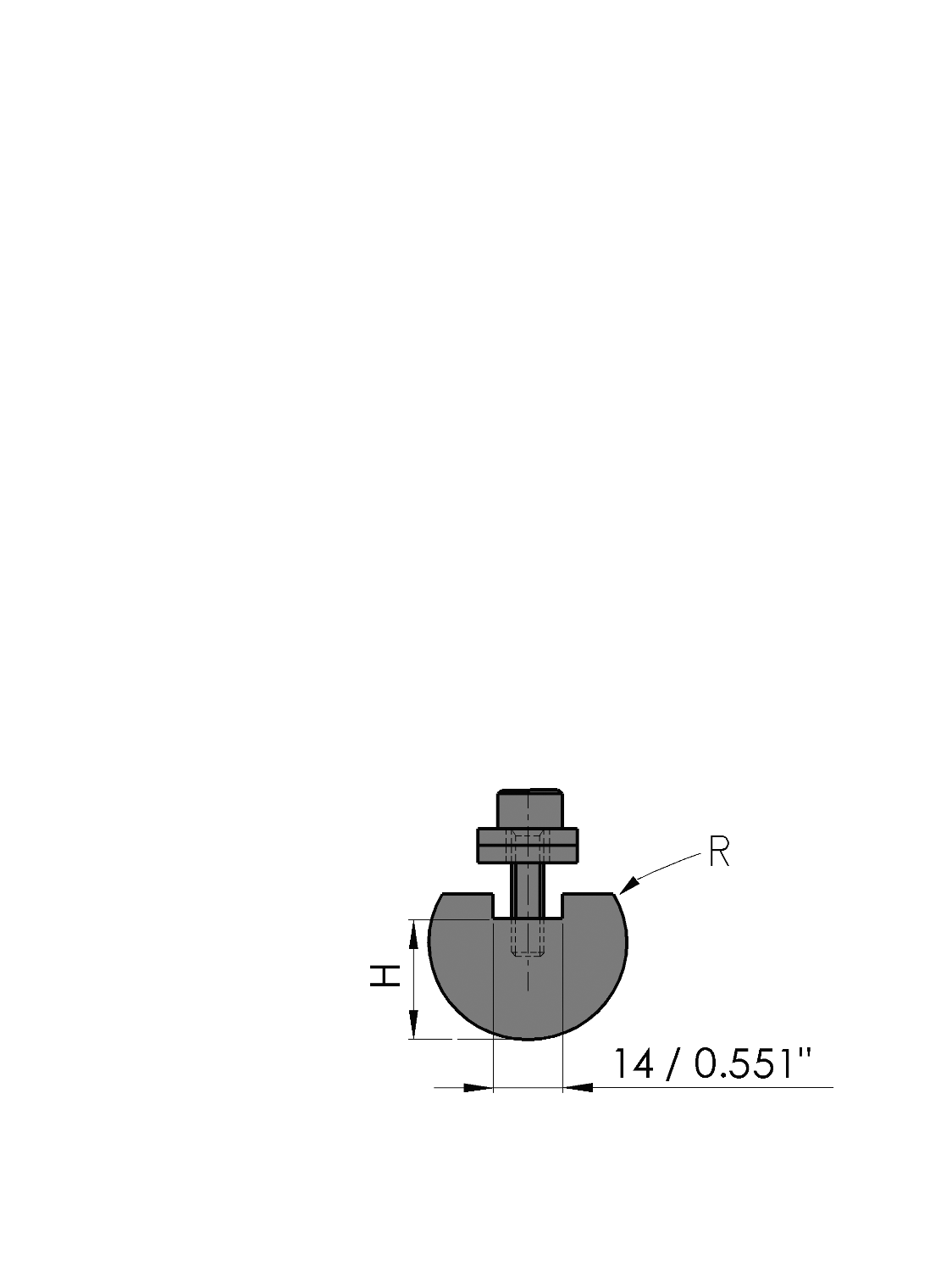

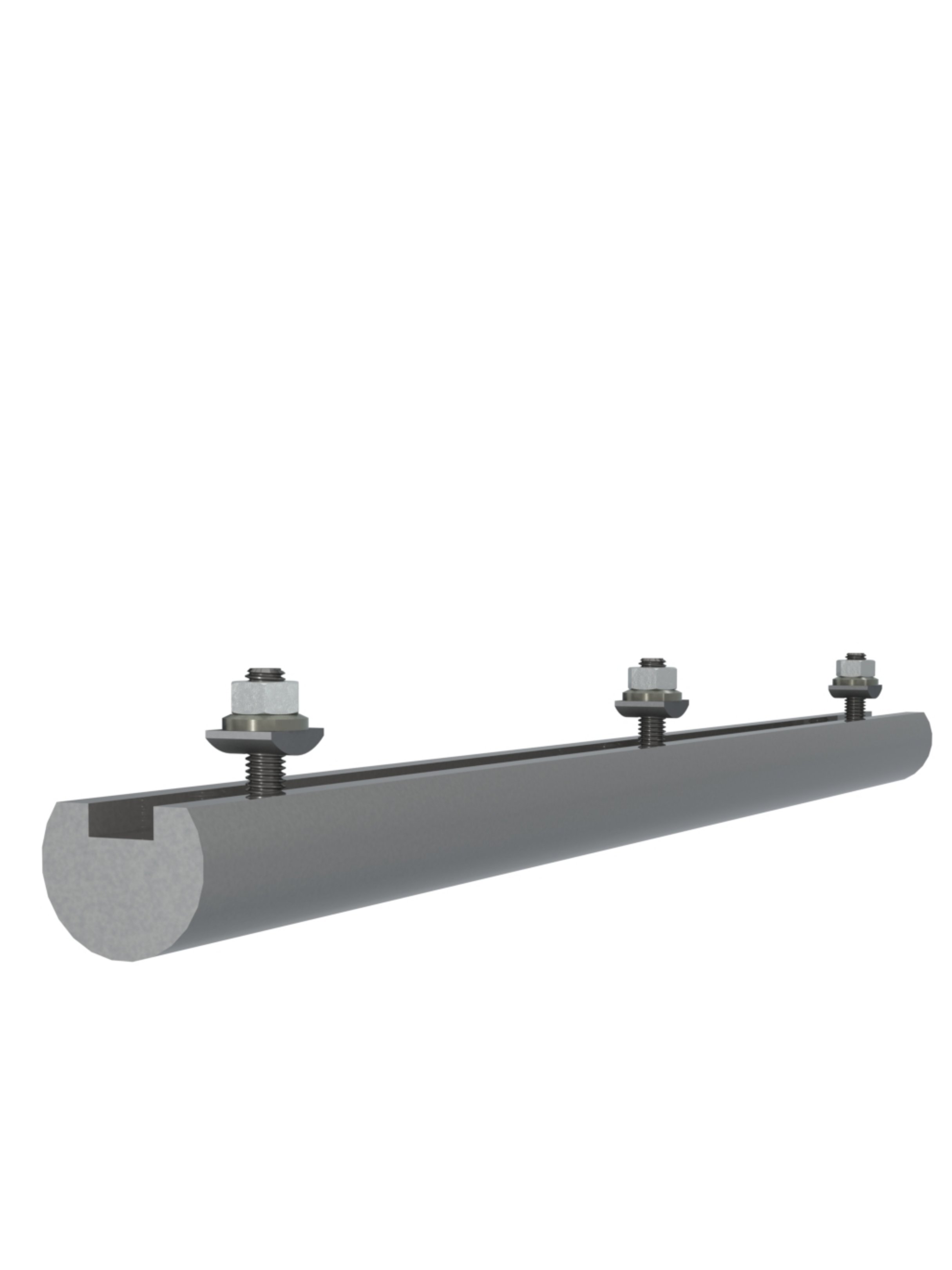

Radius toolWorking height=16.02mm, Width=25mm, Radius=12.5mm, not hardened, Material=C45, Weight=3.18kg/m, Max. load=100ton/m.
Please leave your email address and we'll send you a download link straight away. Or register for MyWILA and get immediate access to all WILA online content.
New Standard holderWorking height H = 88mm Width W = 20mmMax. load = 160 ton/m
New Standard holderWorking height H = 163mm Width W = 20mmMax. load = 160 ton/m
New Standard holderWorking height H = 163mm Width W = 50mmMax. load = 250 ton/m
